MASCOT / PRODUCTS
Our product range is continually expanding. Every unit below has its own product page — specification, features, and an enquiry path straight to our costing team.
This page reflects our most-requested product lines. New products are added regularly — for the complete, up-to-date range, view our full product catalogue.
STERILIZING STATION
The Sterilizer is a pressure vessel designed to sterilize fresh fruit bunches (FFB)...
STERILIZING STATION
The Sterilizer is a pressure vessel designed to sterilize fresh fruit bunches (FFB) ...
THRESHING STATION

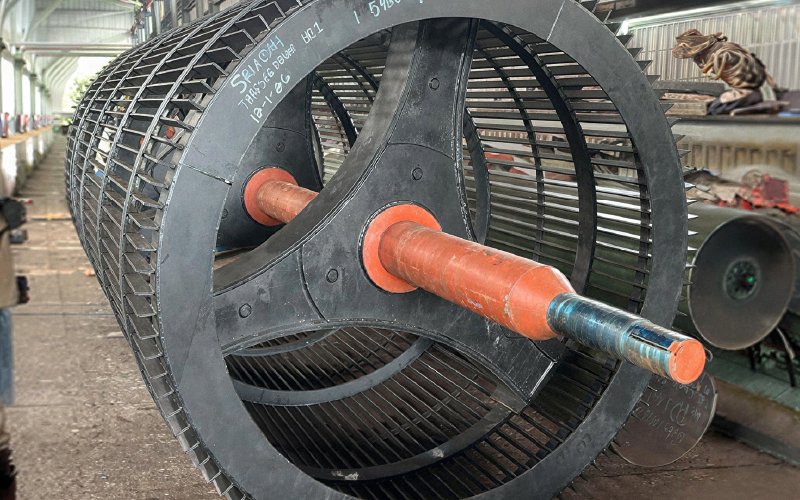

The Shaftless Thresher Drum is a critical component in the palm oil milling process...
THRESHING STATION
The Shafted Thresher Drum is a critical component in the palm oil milling process...
THRESHING STATION
The Double Deck Crusher Roller is used to loosen partially unstripped bunches...
Process Equipment
The Digester is a vertical cylindrical vessel designed for mechanical digestion...
KERNEL RECOVERY STATION
The Ripple Mill is a key machine in the palm oil mill kernel recovery system...
KERNEL RECOVERY STATION
The MEC Depericarping System separates palm nuts from fibre...
KERNEL RECOVERY STATION
The MEC Nut Silo is a storage and conditioning vessel used to temporarily hold...
KERNEL RECOVERY STATION
The Cake Breaker Conveyor (CBC) is installed downstream of the Screw Press...
UTILITIES & CONVEYING
Sectional screws are individual screw flights formed into a helix...
UTILITIES & CONVEYING
An Airlock, also known as a Rotary Airlock, is a mechanical device...
UTILITIES & CONVEYING
The MEC EFB Conveyor is a heavy-duty conveying system...
Request our latest capability statement and culture deck.
Co. Reg. 41389-T · CIDB G7 · Est. 1978
Engineering strength. Construction excellence.
HEAD OFFICE
PLO 314/205, Jalan Perak Dua,
Pasir Gudang Industrial Estate,
81700 Pasir Gudang, Johor
+607 251 1887 · sales@mascot.com.my
© 2026 Mascot Engineering & Construction Sdn Bhd (41389-T)
UTILITIES & CONVEYING
PRODUCT DESCRIPTION

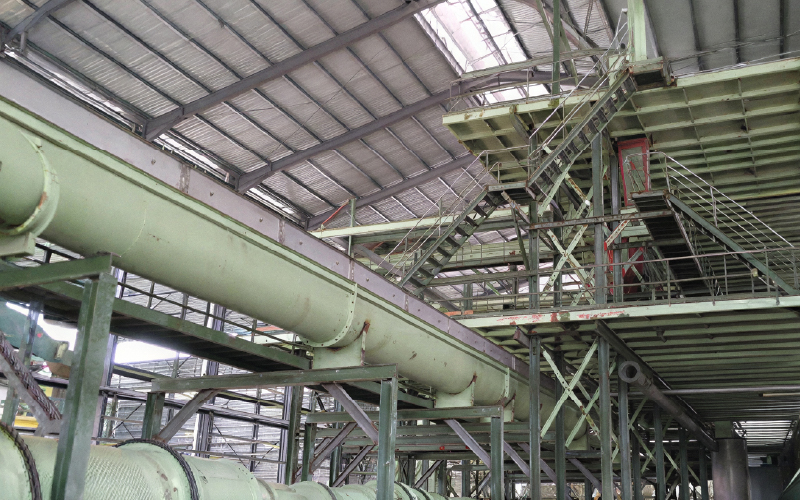

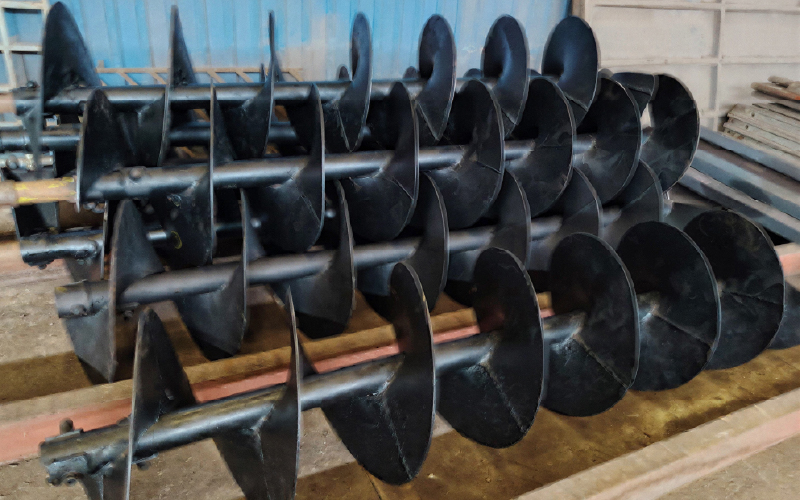

Sectional screws are individual screw flights formed into a helix to meet required diameter and pitch specifications. This design offers flexibility for various conveying applications and is commonly used for handling bulk materials in industrial systems. The Screw Ribbon Conveyor is ideal for conveying palm oil mill materials such as fruit mash, fibre, shell, or sludge.
PRODUCT DESCRIPTION
Process Equipment
PRODUCT DESCRIPTION

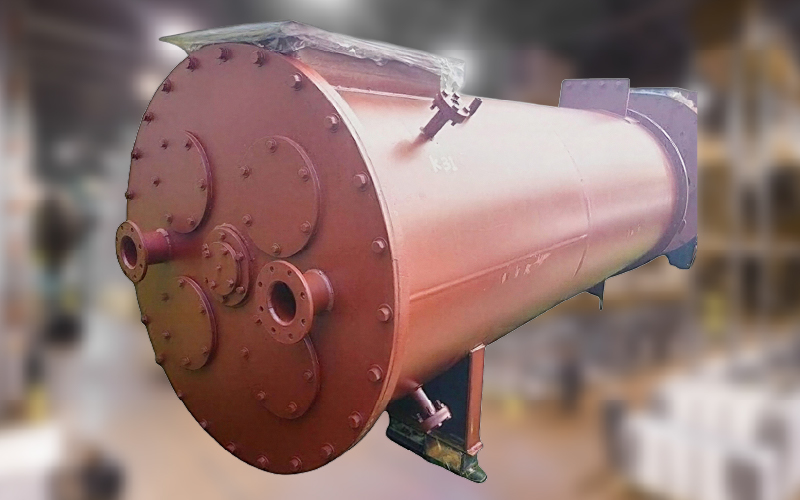

The Digester is a vertical cylindrical vessel designed for mechanical digestion of sterilized palm fruitlets in palm oil milling processes. Its primary function is to rupture the oil-bearing cells of the mesocarp through continuous agitation and shear force, thereby improving oil release efficiency prior to pressing.
PRODUCT FEATURES
KERNEL RECOVERY STATION
PRODUCT DESCRIPTION

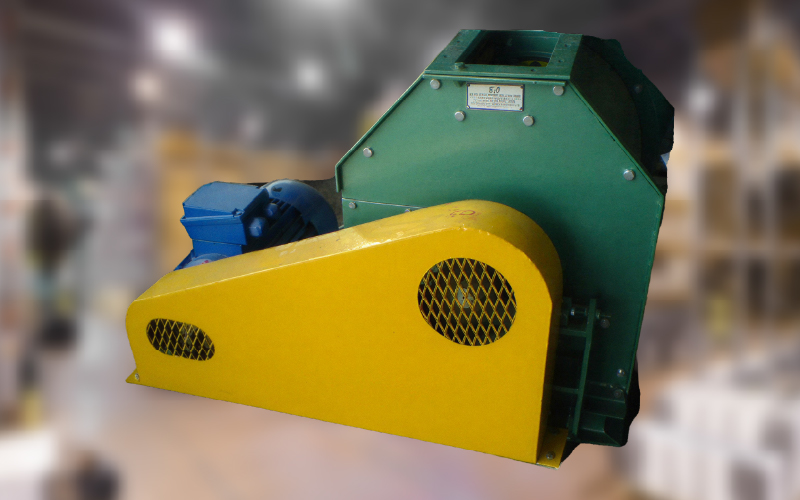

The Ripple Mill is a key machine in the palm oil mill kernel recovery system, designed to efficiently crack palm nuts while minimising kernel breakage. It features a robust ripple rotor that provides controlled impact for effective nut cracking, with stable performance, low maintenance, and reliable operation for continuous mill processing
PRODUCT FEATURES
STERILIZING STATION
PRODUCT DESCRIPTION

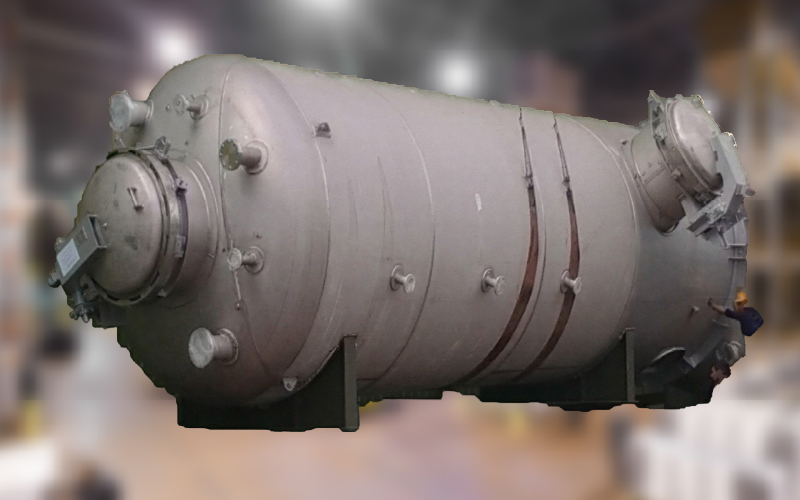

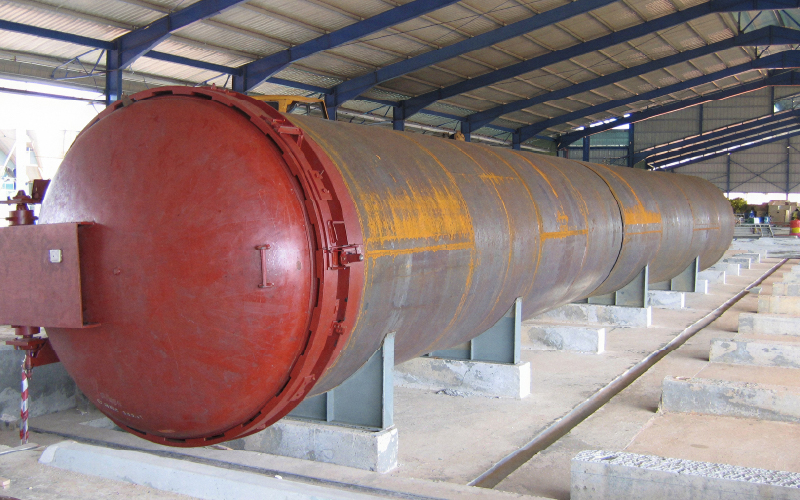

The Sterilizer is a pressure vessel designed to sterilize fresh fruit bunches (FFB) using low-pressure steam. Sterilization loosens the fruits from the bunches, deactivates lipase enzymes to prevent free fatty acid (FFA) formation, and conditions the nuts and fibres for downstream processing. The Indexer System controls the loading and unloading of FFB cages into the sterilizer in a timed, automated sequence.
PRODUCT FEATURES
THRESHING STATION
PRODUCT DESCRIPTION
The Shaftless Thresher Drum is a critical component in the palm oil milling process, designed to efficiently separate fresh fruit bunches (FFB) into loose fruits and empty fruit bunches (EFB). Its robust construction and optimised drum design ensure consistent threshing performance while minimising fruit damage and oil losses
PRODUCT FEATURES
THRESHING STATION
PRODUCT DESCRIPTION

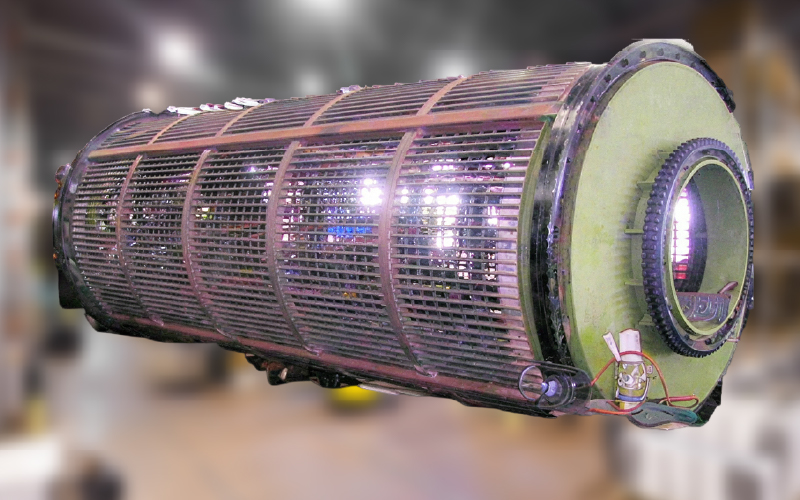

The Shafted Thresher Drum is a critical component in the palm oil milling process, designed to efficiently separate fresh fruit bunches (FFB) into loose fruits and empty fruit bunches (EFB). Its robust construction and optimised drum design ensure consistent threshing performance while minimising fruit damage and oil losses.
PRODUCT FEATURES
THRESHING STATION
PRODUCT DESCRIPTION

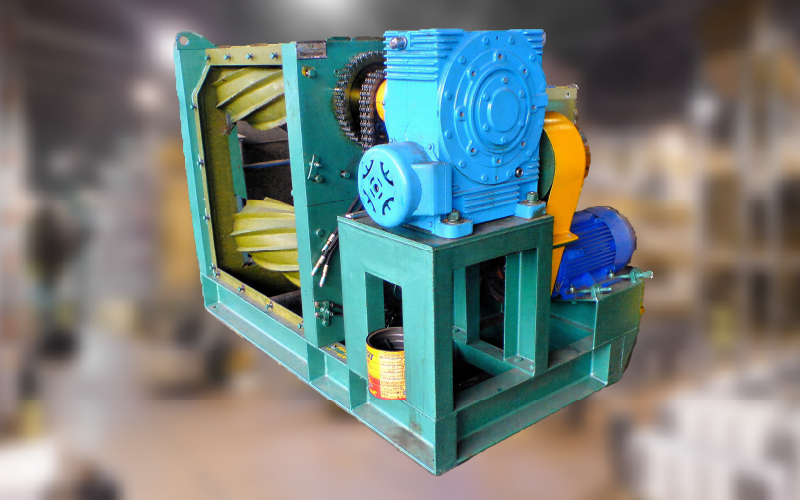

The Double Deck Crusher Roller is used to loosen partially unstripped bunches before re-feeding into the Thresher Drum. About 10–12% of fruits are detached in the first pass through the thresher; the Roller Crusher recovers the remaining fruits, improving overall oil and kernel recovery rates by approximately 0.6% oil and 0.3 -- 0.4% kernel to FFB.
PRODUCT FEATURES
KERNEL RECOVERY STATION
PRODUCT DESCRIPTION
The MEC Depericarping System separates palm nuts from fibre after the pressing process. The system uses a combination of pneumatic air columns (winnowers) and centrifugal action to classify and separate the lighter fibre fraction from the denser nuts. Efficient depericarping is critical to achieving high kernel recovery rates and reducing shell contamination in the kernel stream.
PRODUCT FEATURES
KERNEL RECOVERY STATION
PRODUCT DESCRIPTION

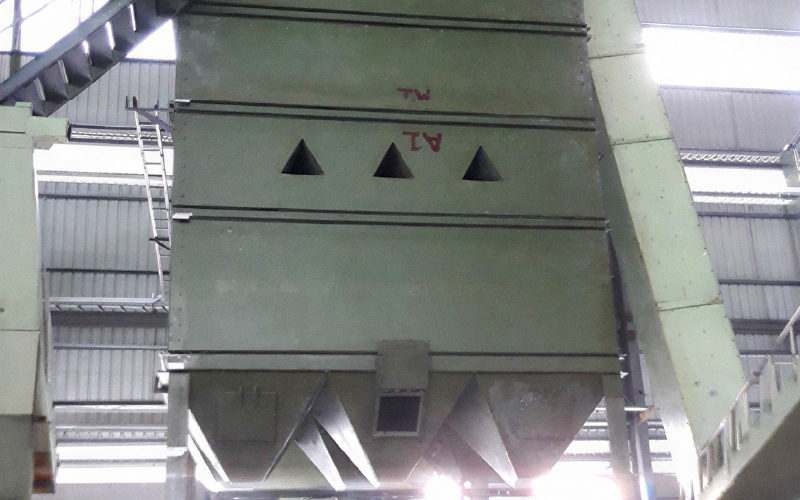

The MEC Nut Silo is a storage and conditioning vessel used to temporarily hold and condition palm nuts prior to cracking in the Ripple Mill. Conditioning allows nut moisture content to reduce to an optimal level, ensuring more efficient cracking and reducing kernel breakage. The silo is equipped with a shaker grate at the base for controlled and uniform nut discharge.
PRODUCT FEATURES
KERNEL RECOVERY STATION
PRODUCT DESCRIPTION
The Cake Breaker Conveyor (CBC) is installed downstream of the Screw Press to break up and convey the press cake a mixture of fibre and palm nuts while aerating and partially drying it. The CBC uses a rotating paddle shaft inside an enclosed trough to both convey and break the cake, preparing it for efficient separation in the depericarping system.
PRODUCT FEATURES
UTILITIES & CONVEYING
PRODUCT DESCRIPTION

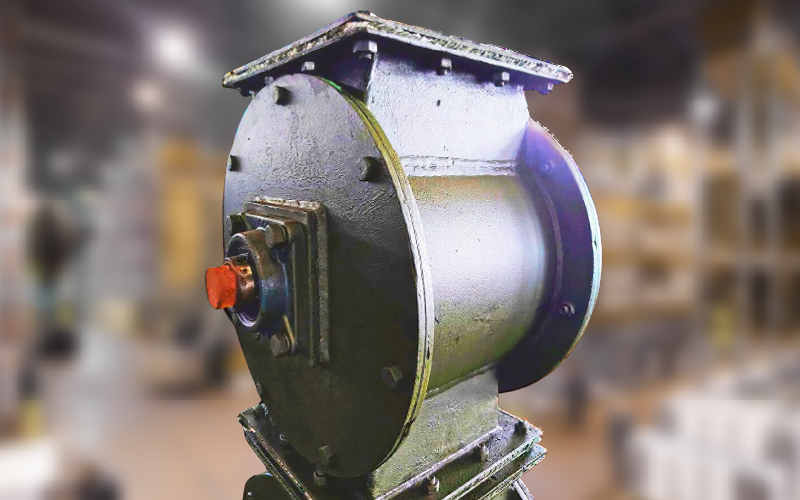

An Airlock, also known as a Rotary Airlock, is a mechanical device installed at the discharge outlet of a cyclone in dust and solid handling systems. It allows continuous discharge of solid materials while maintaining an effective air seal to prevent air leakage. The airlock uses a rotating multi-vane rotor housed in a casing to ensure smooth material flow without disturbing the system's airflow or pressure balance.
PRODUCT FEATURES
UTILITIES & CONVEYING
PRODUCT DESCRIPTION
The MEC EFB Conveyor is a heavy-duty conveying system designed to transport empty fruit bunches (EFB) from the threshing station to the EFB press, boiler fuel station, or composting area. The conveyor is designed to handle the bulky, fibrous nature of EFB reliably and continuously under the harsh conditions of a palm oil mill environment.
PRODUCT FEATURES
CONVEYING
PRODUCT DESCRIPTION

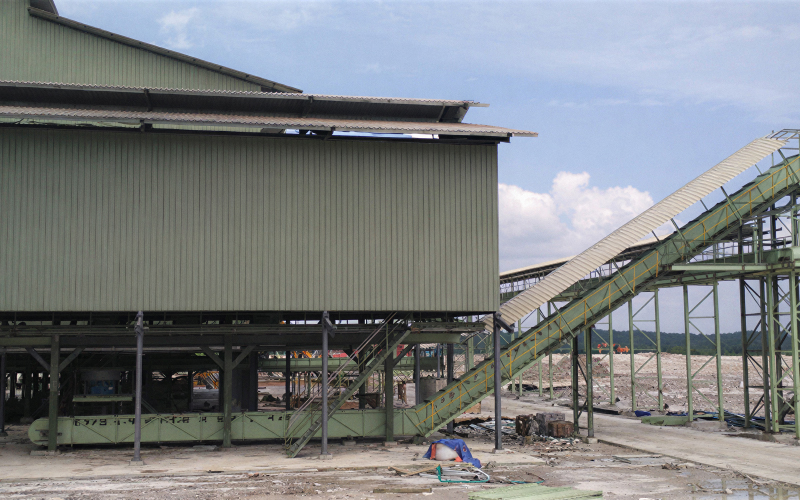

Common transportation and conveying equipment for bulky agricultural products such as empty bunches and fibre.
PRODUCT FEATURES
Heavy-duty scraper flight design
Suited to abrasive, high-volume material
Enclosed trough to reduce spillage
CONVEYING
PRODUCT DESCRIPTION
A tipping trailer for the transportation of raw and finished agricultural products between reception, processing and dispatch areas.
PRODUCT FEATURES
Hydraulic tipping mechanism
Heavy-duty chassis for mill-yard conditions
Custom capacity to suit fleet requirements
STERILIZING STATION
PRODUCT DESCRIPTION
The Sterilizer is a pressure vessel designed to sterilize fresh fruit bunches (FFB) using low-pressure steam. Sterilization loosens the fruits from the bunches, deactivates lipase enzymes to prevent free fatty acid (FFA) formation, and conditions the nuts and fibres for downstream processing. The Vertical System is compact, and space saving footprint. It has a long service life with minimal failure rates and is low maintenance with simple design.
PRODUCT FEATURES
